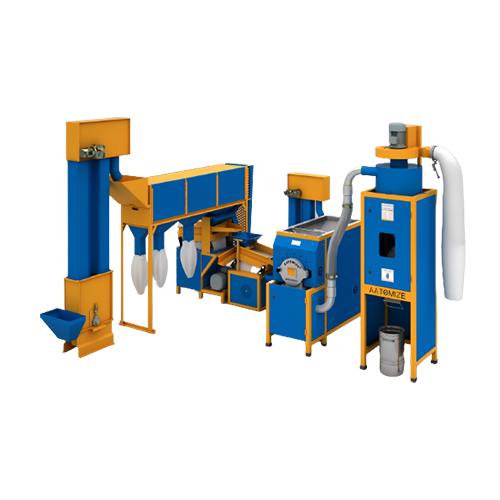

We are Manufacturers and Suppliers of Fully Automatic Industrial Atta Chakki Plant. At Aatomize, we extend our expertise to crafting Heavy Duty Pulverizers with cyclones, offering a diverse range of machines ranging from 3HP, 5HP, 7HP, 10HP and 20HP. additionally, we also provide Semi-Automatic Flour Mill Plant. Our commitment remains steadfast in delivering excellence in every product we offer.
MODEL NAME | 5HP | 10HP | 20HP |
---|---|---|---|
MODEL NO. | AZ101 | AZ201 | AZ301 |
Grinding Capacity | 10 to 12kg | 15 to 17 kg | 20 to 25 kg |
Material | MS Body | MS Body | MS Body |
Automation Grade | Semi Automatic | Semi Automatic | Semi Automatic |
Power Source | Electric | Electric | Electric |
Voltage (V) | 220 | 220 | 220 |
Current (A) | 6 | 10 | 15 |
Corrosion Resistance | Yes | Yes | Yes |
Power Consumption | 0.746kWH | 1.5 kWH | 2.30 kWH |
Motor Speed | 2880 rpm | 2880 rpm | 2880 rpm |
Frequency (HZ) | 50 | 50 | 50 |
Motor Type | Single Phase | Single Phase | Single Phase |
Coating | Powder Coating | Powder Coating | Powder Coating |
Chamber | Single Chamber | Single Chamber | Single Chamber |
Machine Dimension Inch | L 24" W13" H 32" | L 26" W14" H 35" | L 31" W15" H 41" |
Chamber Dimension Inch | 6" Dia x 4" Depth | 10" Dia x 5" Deapth | 10" Dia x 6.5" Depth |
